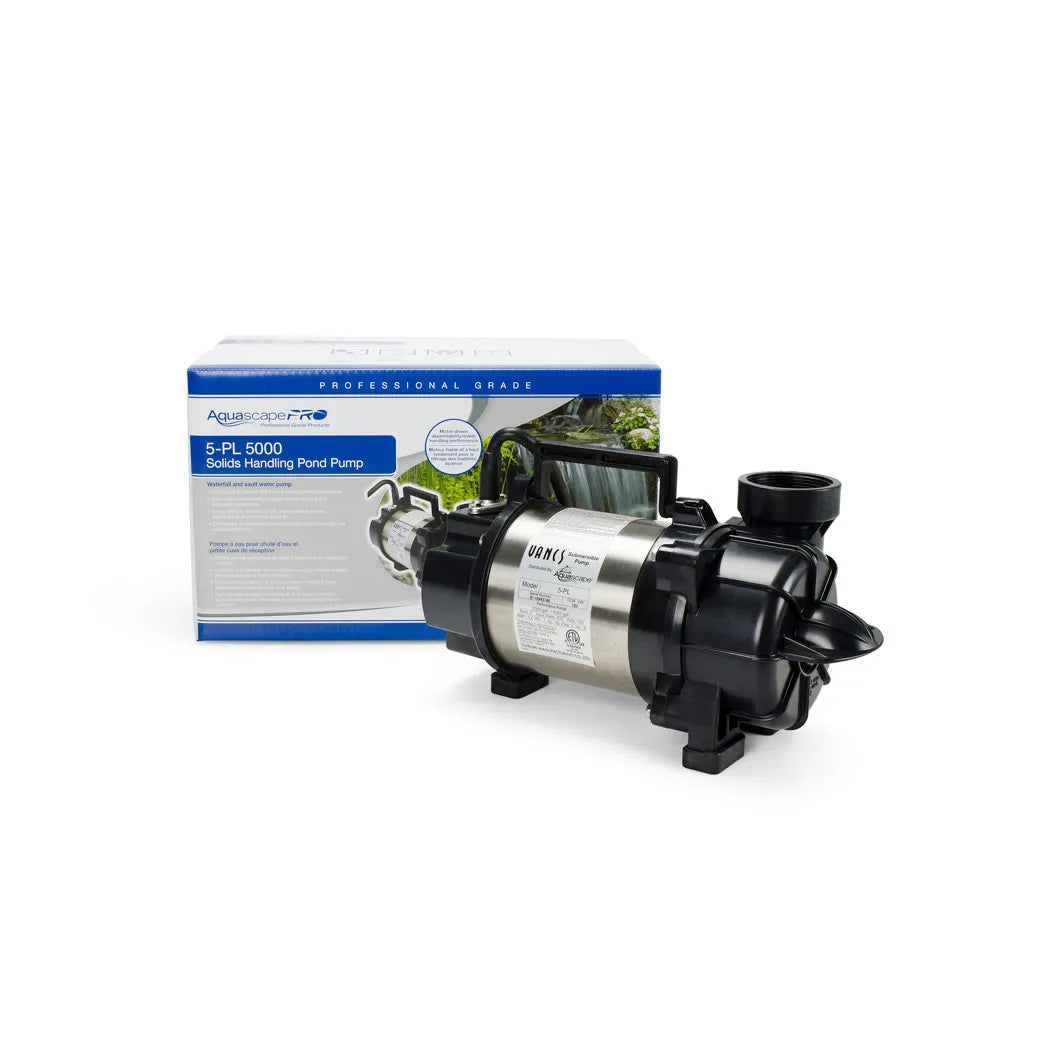

Aquascape 5-PL 5000 Solids-Handling Pond Pump

The Aquascape 5-PL 5000 Solids-Handling Pond Pump is ideal for ponds, pondless waterfalls, and other water feature applications. Known for durability, performance, and value, each is constructed from stainless steel and composite resin for strength and corrosion resistance. The energy-efficient, continuous-duty, direct-drive motor operates at lower temperatures, extending the life of the pump significantly. The pump also contains a built-in thermal overload, protecting it from damage if ever run in low-water conditions.

• Stainless steel and composite resin construction
• Semi-vortex impeller allows solids handling
• Built-in thermal overload
• 20' power cord
• 2" FPT Discharge
• Dimensions: 13.2"L x 5.9"W x 7.3"H

Frequently Asked Questions

1. What is the Aquascape 5-PL 5000 Solids-Handling Pond Pump?

The Aquascape 5-PL 5000 Solids-Handling Pond Pump is a durable submersible pump designed for ponds, Pondless® waterfalls, streams, and other water features. Its direct-drive motor and semi-vortex impeller help deliver reliable water circulation while handling solids to reduce clogging and maintenance.

2. What is the maximum flow rate of the Aquascape 5-PL 5000 pump?

The Aquascape 5-PL 5000 has a maximum flow rate of 5,300 gallons per hour (GPH). Actual water flow depends on pumping height and plumbing resistance. The manufacturer's flow chart lists approximately 4,500 GPH at 5 feet of head, 3,500 GPH at 10 feet, 1,800 GPH at 15 feet, and a maximum head height of 23 feet.

3. Is the Aquascape 5-PL 5000 suitable for waterfalls?

Yes, the Aquascape 5-PL 5000 is suitable for compatible waterfalls, streams, and Pondless® waterfall systems. Its high flow capacity supports substantial water movement. Choose the pump based on waterfall width, desired water depth, vertical lift, and pipe size to achieve the required flow.

4. Can the Aquascape 5-PL 5000 be used for pond filtration?

Yes, this solids-handling pond pump can circulate water through compatible pond filtration systems. Before installation, check the filter's recommended flow range and account for pressure losses from pipe length, fittings, and elevation changes to ensure adequate water circulation.

5. How much electricity does the Aquascape 5-PL 5000 Pond Pump use?

The Aquascape 5-PL 5000 is rated at 620 watts and 5.6 amps. Its continuous-duty, direct-drive motor is designed for efficient operation at lower temperatures. Actual electricity costs depend on local energy rates and the number of hours the pump runs each day.

6. What size outlet does the Aquascape 5-PL 5000 have?

The Aquascape 5-PL 5000 features a 2-inch threaded discharge. The manufacturer recommends 2-inch or 3-inch pipe for this model, depending on the plumbing layout. Using appropriately sized plumbing helps reduce friction losses and supports better pump performance.

7. How long is the power cord on the Aquascape 5-PL 5000?

The Aquascape 5-PL 5000 includes a 20-foot power cord, giving you flexibility when positioning the pump in a pond or waterfall basin. Follow the manufacturer's electrical safety instructions and use a properly protected GFCI circuit.

8. Can the Aquascape 5-PL 5000 handle debris and solids?

Yes, the pump uses a semi-vortex solids-handling impeller designed to move water containing solids while helping reduce clogging. Although it can handle debris more effectively than many standard circulation pumps, regular inspection and cleaning are still recommended to maintain performance.

9. What materials are used in the Aquascape 5-PL 5000 pump?

The Aquascape 5-PL 5000 is constructed from stainless steel and composite resin for strength and corrosion resistance. It also features a built-in thermal overload protector designed to help prevent motor damage if the pump operates under low-water conditions.

10. What are the dimensions of the Aquascape 5-PL 5000 Pond Pump?

The Aquascape 5-PL 5000 measures approximately 13.2 inches long, 5.9 inches wide, and 7.3 inches high. Its compact design makes it suitable for many pond pump chambers and waterfall basins. Check the available installation space and plumbing connections before purchasing.

11. How do you clean and maintain the Aquascape 5-PL 5000?

Disconnect the power before inspecting or servicing the pump. Check the intake for leaves, sediment, and other debris, and follow the manufacturer's manual for cleaning the impeller and internal components. Regular maintenance helps preserve water flow and supports reliable operation over time.

12. What warranty comes with the Aquascape 5-PL 5000 Pond Pump?

The Aquascape 5-PL 5000 Solids-Handling Pond Pump includes a two-year limited manufacturer's warranty. Coverage is subject to the manufacturer's terms and exclusions. Keep your proof of purchase and review the current warranty documentation for complete details.
