Atlantic MD1500 Tidal Wave MD-Series Pump 1560 GPH

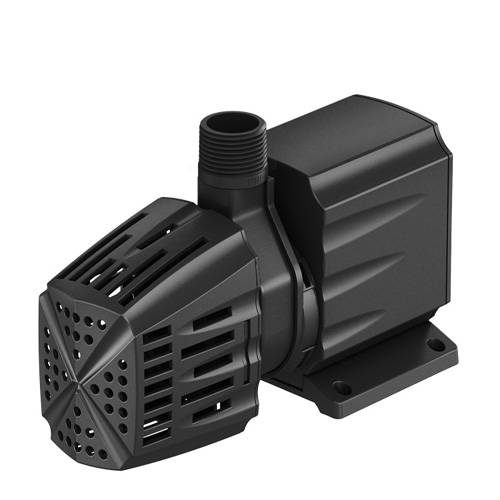

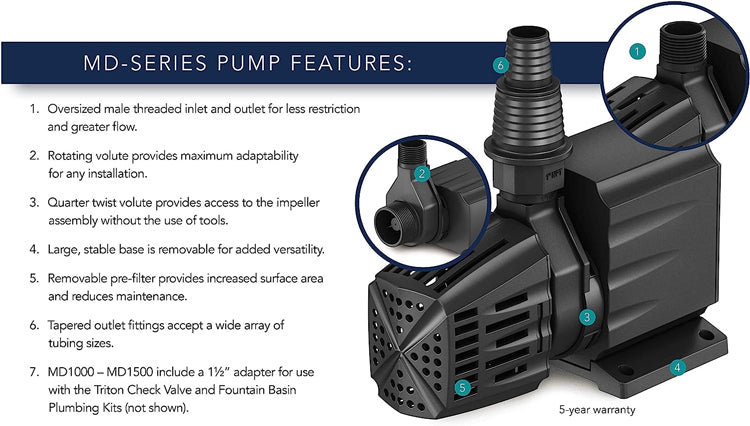

Atlantic Tidal Wave MD-Series submersible pond pumps are the perfect choice for ponds, waterfalls, filters and fountains. These submersible pumps are heavy-duty, equipped with removable pre-filters and replaceable impeller assemblies. Large, stable base for anchoring pump may be removed in tight applications. Included outlet fittings are tapered to fit a variety of tubing types and sizes. Front end impeller assembly can be removed with a quick quarter turn for easy periodic cleanings. Mag-drive technology makes this pump extremely energy efficient, saving hundreds of dollars over traditional pumps.

• Energy efficient mag-drive technology
• Removable pre-filter
• Included barbed outlet fitting
• 20 ft power cord

Frequently Asked Questions

1. What is the Atlantic MD1500 TidalWave MD-Series Pump?

The Atlantic MD1500 TidalWave MD-Series Pump is a magnetic-drive pond pump designed for reliable water circulation in smaller ponds, waterfalls, fountains, and other water features. With a maximum flow rate of 1,560 gallons per hour (GPH), it offers an efficient solution for pond owners who need dependable water movement in a compact design.

2. What is the maximum flow rate of the Atlantic MD1500 Pond Pump?

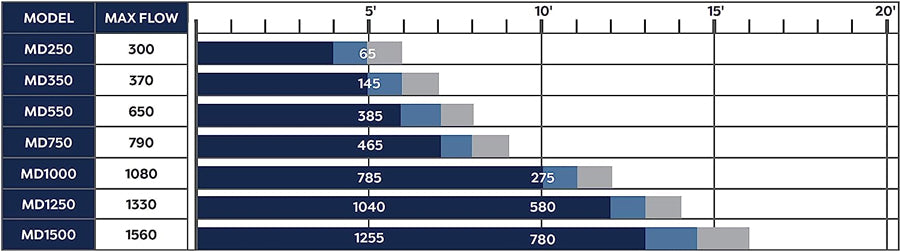

The Atlantic MD1500 has a maximum flow rate of 1,560 GPH under low-head conditions. The actual water flow decreases as the pumping height and plumbing resistance increase. For example, the published performance chart lists approximately 1,255 GPH at 5 feet of head and 780 GPH at 10 feet of head.

3. Is the Atlantic MD1500 suitable for pond waterfalls and fountains?

Yes. The Atlantic MD1500 TidalWave Pump can be used for appropriately sized pond waterfalls, fountains, and decorative water features. Before installation, calculate the required flow rate and total dynamic head to ensure the pump can deliver sufficient water through your plumbing system.

4. Can the Atlantic MD1500 be used for pond filtration?

Yes. The Atlantic MD1500 can circulate water through compatible pond filtration systems. Choose a filter that matches the pump's flow rate and your pond's needs, and regularly inspect the pump's removable pre-filter to help maintain consistent water circulation.

5. What type of pump is the Atlantic MD1500?

The Atlantic MD1500 is a magnetic-drive, or Mag Drive, pump. Its magnetic induction design is intended to provide reliable operation in ponds, waterfalls, and fountains. The MD-Series also features a serviceable impeller assembly and a versatile housing design for easier maintenance and installation.

6. How much electricity does the Atlantic MD1500 use?

The Atlantic MD1500 operates on a 115-volt power supply and has a listed power consumption of 165 watts. Its energy use will depend on operating time and actual electrical consumption. Always follow the manufacturer's electrical safety instructions and use a properly grounded, GFCI-protected outlet for pond equipment.

7. What size inlet and outlet connections does the MD1500 have?

The Atlantic MD1500 features a 1½-inch MIPT inlet and a 1-inch MIPT outlet. It also includes an adapter for compatible plumbing applications that require a 1½-inch discharge connection. Check your hose, fittings, and plumbing requirements before installation.

8. Does the Atlantic MD1500 include a pre-filter?

Yes. The Atlantic MD1500 features a removable pre-filter that helps reduce debris entering the pump. The pre-filter provides additional intake surface area and can help reduce maintenance. Inspect and clean it regularly according to the manufacturer's instructions.

9. How high can the Atlantic MD1500 pump water?

The Atlantic MD1500 has a maximum head height of approximately 15 feet 6 inches according to published product specifications. Flow decreases as the water is lifted higher, so the pump should be selected based on the required flow at your installation's actual pumping height rather than its maximum GPH rating alone.

10. What are the dimensions of the Atlantic MD1500 TidalWave Pump?

The Atlantic MD1500 measures approximately 6 inches long, 4.75 inches wide, and 6 inches high. Its compact size makes it suitable for many smaller pond and water-feature installations. Confirm that there is enough space for the pump, plumbing connections, and routine cleaning.

11. How easy is the Atlantic MD1500 to maintain?

The Atlantic MD1500 is designed for convenient maintenance. Its quarter-turn volute provides access to the replaceable impeller assembly, while the removable pre-filter makes routine cleaning easier. Disconnect power before inspecting or servicing the pump, and follow the manufacturer's maintenance instructions.

12. What warranty comes with the Atlantic MD1500 Pond Pump?

The Atlantic MD1500 TidalWave MD-Series Pump comes with a 5-year limited manufacturer's warranty. Review the manufacturer's warranty terms for coverage details, installation requirements, and exclusions, and retain your proof of purchase.
