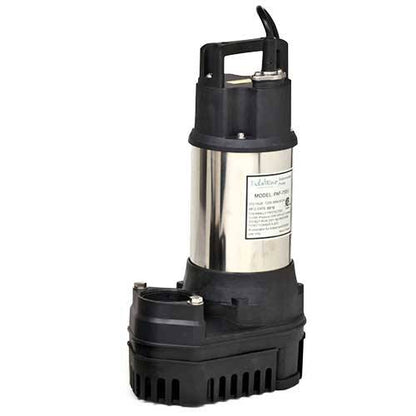

Atlantic PAF-75 Tidal Wave Pond Pump 1 HP with FREE Pump Protector
OUR SECURED AND PAYMENT GATEWAY
Description

Atlantic TidalWave PAF-Series submersible pond and waterfall pumps are perfect for demanding high-volume applications, ideal for in skimmer use. They feature energy efficient direct drive motors, double silicone carbide mechanical seals and fiber-reinforced vortex impeller ensure dependable, long lasting service. Overload and thermal protection shuts down pump before overheating can cause damage. A removable intake screen allows for solids handling capacity. PAF-Series pumps are rugged and lightweight for easier servicing and a long life.Â
Â
- Stainless steel and composite construction
- Double silicon carbide mechanical seals
- Fiber-reinforced vortex impeller
- Removable intake screen for solids handling capacity
- Thermal overload protection
- 20 ft power cord
Â
Frequently Asked Questions
1. What is the Atlantic PAF-75 TidalWave Pond Pump?
The Atlantic PAF-75 TidalWave Pond Pump is a heavy-duty, 1 HP submersible pump designed for high-volume pond circulation, waterfalls, streams, and demanding water garden applications. Its direct-drive motor, durable construction, and medium-head performance make it suitable for installations that require substantial water flow.
2. What is the maximum flow rate of the Atlantic PAF-75 pump?
The Atlantic PAF-75 delivers up to 5,950 gallons per hour (GPH) at 5 feet of head. Actual water flow depends on the vertical lift, plumbing diameter, pipe length, fittings, and other system restrictions.
3. What voltage does the Atlantic PAF-75 pond pump require?
The Atlantic PAF-75 operates on a 115-volt electrical supply. It draws approximately 8.5 amps and consumes 900 watts. Verify that your electrical circuit and protective devices meet the manufacturer's requirements before installation.
4. What is the maximum head height of the Atlantic PAF-75?
The Atlantic PAF-75 has a maximum rated head of approximately 36 feet. Maximum head represents the upper lifting limit at which water flow approaches zero. For practical system design, consult the pump's performance chart to determine the flow available at your operating height.
5. How much water does the Atlantic PAF-75 pump deliver at different heights?
Published performance data lists approximately 5,950 GPH at 5 feet of head, 5,270 GPH at 10 feet, 4,560 GPH at 15 feet, 3,750 GPH at 20 feet, 2,830 GPH at 25 feet, and 1,770 GPH at 30 feet. These figures help you estimate the flow available for your pond, stream, or waterfall installation.
6. Is the Atlantic PAF-75 suitable for large ponds and waterfalls?
Yes. The Atlantic PAF-75 is designed for high-volume, medium-head applications, making it suitable for large ponds, waterfalls, streams, and water gardens. Choose the pump based on the required flow rate and total system head to achieve the desired water feature performance.
7. Can the Atlantic PAF-75 be used in a pond skimmer?
Yes. The Atlantic PAF-75 is suitable for compatible pond skimmer installations. Its removable intake screen allows it to be configured for clean-water service in skimmers or for handling solids up to 1.25 inches in suitable pond applications, according to the manufacturer.
8. What size outlet does the Atlantic PAF-75 pump have?
The Atlantic PAF-75 features a 2-inch female iron pipe thread (FIPT) discharge outlet and includes a 2-inch insert fitting for compatible plumbing. Use appropriately sized pipes and fittings to help reduce flow restrictions.
9. How long is the power cord on the Atlantic PAF-75?
The Atlantic PAF-75 includes a 20-foot power cord, providing flexibility for suitable pond and waterfall installations. Follow the manufacturer's electrical safety instructions and applicable local electrical codes.

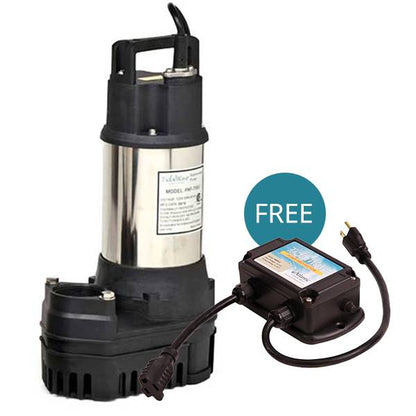

10. What is included with the Atlantic PAF-75 pump and free Pump Protector?
This product offer includes the Atlantic PAF-75 1 HP TidalWave Pond Pump and a compatible Pump Protector. The protector is designed to help guard the pump against damaging operating conditions, such as dry running, certain flow restrictions, and excessive current. Confirm the included protector model and compatibility before installation.
11. What does the Atlantic Pump Protector do?
The Atlantic Pump Protector monitors pump operating conditions and can shut off power when it detects certain abnormal conditions, helping reduce the risk of damage from dry running, restricted flow, or excessive current. Follow the protector's instructions for setup, operation, and resetting after a shutdown.
12. Does the Atlantic PAF-75 have thermal overload protection?
Yes. The Atlantic PAF-Series pump includes overload and thermal protection designed to shut down the pump before excessive heat causes damage. Proper installation, adequate water supply, and correct electrical protection remain essential.
13. What materials are used in the Atlantic PAF-75 pump?
The Atlantic PAF-75 features stainless steel and a high-impact composite housing, along with double silicon carbide mechanical seals and a fiber-reinforced vortex impeller. These components are designed to support durability and dependable service in demanding pond and water feature applications.
14. Can the Atlantic PAF-75 handle solids and debris?
Yes. With its removable intake screen configured for suitable pond applications, the Atlantic PAF-75 can handle solids up to 1.25 inches in diameter, according to the manufacturer. Remove debris from the intake as needed and follow the manual's recommendations to maintain reliable operation.
15. Is the Atlantic PAF-75 designed for continuous operation?
The Atlantic PAF-Series is designed for continuous-duty pond and water feature applications when installed and operated according to the manufacturer's instructions. Maintain appropriate water flow, use compatible plumbing, and avoid operating the pump outside its recommended performance range.
16. What warranty comes with the Atlantic PAF-75 pump?
The Atlantic PAF-75 comes with a two-year manufacturer's warranty. Review the official warranty terms for coverage details, exclusions, and any applicable installation or maintenance requirements.
17. How do I install the Atlantic PAF-75 TidalWave Pond Pump?
Install the Atlantic PAF-75 according to the official PAF-Series manual. Position it securely in a suitable submerged location or compatible skimmer, connect the plumbing correctly, and maintain an unobstructed intake. Use a properly protected electrical supply, and disconnect power before installation adjustments or maintenance.
18. How do I maintain the Atlantic PAF-75 pond pump?
Inspect the intake screen, remove accumulated debris, and check the plumbing for restrictions or damage. Periodically inspect the pump and Pump Protector according to their manuals. Always disconnect power before servicing the pump, and investigate repeated protector shutdowns rather than continually resetting the unit.
19. How do I choose the right Atlantic TidalWave pump for my pond?
Select a pond pump based on the desired gallons per hour, vertical lift, pipe size, plumbing resistance, and water feature design. The Atlantic PAF-75 is a 1 HP pump that delivers up to 5,950 GPH at 5 feet of head. Compare your system requirements with the manufacturer's performance chart before purchasing.
