EasyPro Stratus Rotary Vane Compressor - 3/4 HP - 230v

Rotary Vane Compressors

Details

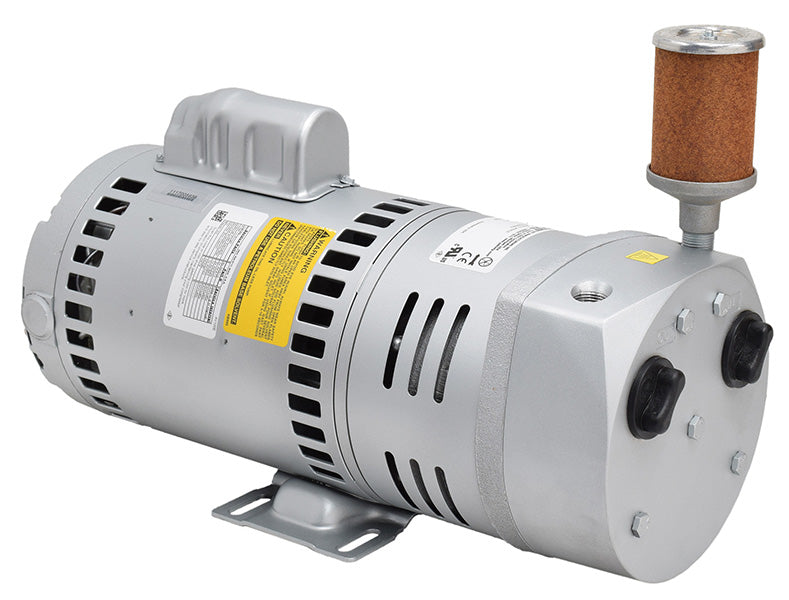

RV752 Stratus Rotary Vane Compressor – 3/4 HP – 230v

Rotary Vane Compressors

• Long lasting, continuous duty compressors offer less depth capabilities than the diaphragm or rocking piston compressors but produce considerably more air
• Medium pressure, oil free compressors are excellent for pond and lake aeration and de-icing
• Carbon vanes self adjust to maintain maximum efficiency and are easily replaced when worn out
• All models have an 18' maximum operating depth, they come with air filter and 6' power cord
• Air outlet assemblies are available allowing one pump to supply up to 6 air manifolds
• For 115v use part number RV75

Additional Information

• Power Cord Length 6'
• Horsepower 3/4 HP
• Voltage 230v
• Amps 6 amps
• Max PSI 10 psi
• Maximum Depth 18'
• Weight 53

Frequently Asked Questions

1. What is the EasyPro Stratus Rotary Vane Compressor – 3/4 HP – 230V?

The EasyPro Stratus RV752 Rotary Vane Compressor is an oil-free air compressor designed for pond and lake aeration systems. Its 3/4 HP motor delivers high-volume airflow to compatible diffusers, helping support water circulation and dissolved oxygen levels in ponds and lakes.

2. What are the main specifications of the EasyPro Stratus RV752 compressor?

The EasyPro Stratus RV752 features a 3/4 HP motor, 230V power supply, 6-amp electrical rating, and maximum pressure of 10 PSI. It also includes an air filter and a 6-foot power cord and is designed for continuous-duty operation.

3. How much airflow does the EasyPro RV752 compressor provide?

The EasyPro Stratus RV752 delivers approximately 10.0 CFM at 0 PSI, 9.6 CFM at 2 PSI, 9.5 CFM at 4 PSI, 9.4 CFM at 6 PSI, 9.2 CFM at 8 PSI, and 9.0 CFM at 10 PSI. Actual airflow depends on operating pressure and system conditions.

4. What is the maximum operating depth of the EasyPro Stratus RV752?

The EasyPro RV752 has a maximum recommended operating depth of 18 feet. When designing a pond aeration system, consider diffuser depth, tubing resistance, and the airflow requirements of your equipment.

5. Is the EasyPro Stratus RV752 suitable for continuous operation?

Yes. The EasyPro Stratus RV Series is designed for demanding 24-hour operation. Its oil-free rotary vane design, sealed bearings, and thermal overload protection help support dependable performance when installed and maintained according to the manufacturer's instructions.

6. Does the EasyPro RV752 require oil or lubrication?

No. The EasyPro Stratus RV752 uses an oil-free rotary vane design and does not require oil lubrication. Routine maintenance includes inspecting the air filters and checking the carbon vanes for wear to help maintain consistent airflow.

7. Can the EasyPro Stratus RV752 be used for pond and lake aeration?

Yes. This compressor is designed for pond and lake aeration applications. When connected to compatible air tubing and diffusers, it supplies air to help circulate water and support oxygenation. The right setup depends on pond size, water depth, water conditions, and aeration requirements.

8. Can the EasyPro RV752 help with pond de-icing?

Yes. The EasyPro Stratus RV752 can be used in a suitable aeration system to help maintain an open area in pond ice during winter. Proper diffuser placement is important, particularly in fish ponds, because excessive circulation of warmer bottom water can affect fish during cold weather.

9. What accessories are included with the EasyPro Stratus RV752 compressor?

The EasyPro RV752 includes an air filter and a 6-foot power cord. Air outlet assemblies, tubing, and diffusers may need to be purchased separately depending on your installation. Check the product listing to confirm the included components before ordering additional accessories.

10. Can the EasyPro RV752 operate multiple air diffusers?

Yes. Compatible air outlet assemblies are available with two to six valves, allowing one compressor to supply multiple air manifolds. The number of diffusers that can be operated effectively depends on their combined airflow requirements, operating depth, and system layout.

11. What maintenance does the EasyPro Stratus RV752 require?

Inspect the air filters regularly and clean or replace them according to the manufacturer's recommendations. Check the carbon vanes for wear if airflow decreases or performance changes. Replacement vane kits are available. Always disconnect the power supply before servicing the compressor.

12. What is the warranty on the EasyPro Stratus RV752 compressor?

The EasyPro Stratus RV Series comes with a one-year limited warranty, excluding wearable parts. Review the manufacturer's current warranty terms for complete details about coverage, exclusions, and maintenance requirements.
